Manufactured Products

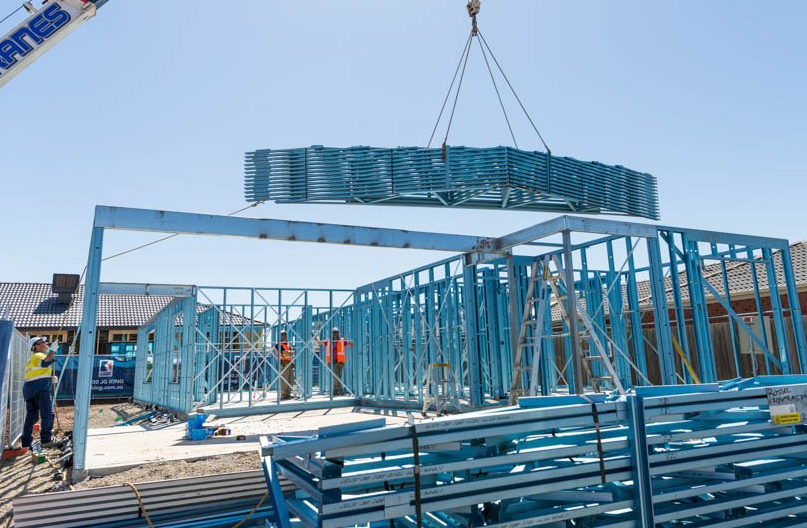

Single storey projects delivered to site within 6 weeks and double storey within 8 weeks!
Products made to order
Steel Frame Solutions products can be made to order based on the volume and timing. Please contact us directly for further information regarding availability, turn around time, and quoting your next project.
STUDS
Stud 90 x 0.55
The vertical structural member of a wall panel to which internal linings and/or external cladding materials are fixed. Service holes are provided for following trades.
Stud 90 x 0.75
The vertical structural member of a wall panel to which internal linings and/or external cladding materials are fixed. Service holes are provided for following trades.
Stud 75 x 0.55
The vertical structural member of a wall panel to which internal linings and/or external cladding materials are fixed. Service holes are provided for following trades.
Stud 75 x 0.75
The vertical structural member of a wall panel to which internal linings and/or external cladding materials are fixed. Service holes are provided for following trades.
TRUSS MATERIAL
Truss Material C/75 x 0.75
This material is used to manufacture trusses and jack rafters. C section can also be used for hip corners and trimming within the roof space.
Truss Material C/75 x 1.0
This material is used to manufacture trusses and jack rafters. C section can also be used for hip corners and trimming within the roof space.
BATTENS
Ceiling Batten 0.42
Ceiling battens are versatile and easy to use, providing strength, lightness and rigidity with low cost. Fasten to steel truss with #10-16x16 hex screw. It is used to support ceiling lining.
Roof Batten 0.55
Steel Frame Solutions battens are manufactured from quality, high strength Zincalume steel which is approximately ten times more resistant to corrosion than galvanised products.
LINTEL
Lintel 200x35 x 1.5
A horizontal structural member of a wall panel that spans over an opening (such as a window or door) to transfer superimposed loads to jamb studs at each side of the opening.
Lintel 105x35 x 1.5
A horizontal structural member of a wall panel that spans over an opening (such as a window or door) to transfer superimposed loads to jamb studs at each side of the opening.
OMEGA NOGGING
Omega Nogging 0.55 x 6100
A continuous horizontal member fixed through holes at stud mid height, to stiffen wall panels.
TRIM ANGLE
Trim angle 35x35 x 1.0
A90 angle 35x35mm used to form corners and general trimming.
PLATES
Plate 90x65 x 1.0 (structural)
A horizontal structural member of a wall panel fixed across the top of studs to carry roof load.
Plate 90x35 x 0.75 (non-structural)
A horizontal member of a wall panel fixed across the bottom of studs. Fasteners are fixed down through the bottom plate to fix the wall panel to the floor. Also used for solid noggings, heads and sills of openings and bottom plate for non-load bearing walls.
Plate 75x65 x 1.0 (structural)
A horizontal structural member of a wall panel fixed across the top of studs to carry roof load.
Plate 75x35 x 0.75 (non-structural)
A horizontal member of a wall panel fixed across the bottom of studs. Fasteners are fixed down through the bottom plate to fix the wall panel to the floor. Also used for solid noggings, heads and sills of openings and top plate for non-load bearing walls.
ACCESSORIES
Grommets – electrical
Electrical grommets are installed before wiring to protect cables from the sharp edges of the service hole.
Grommets – plumbing
Plumbing grommets assist with preventing noise from water hammer and isolate copper pipes form the steel frame.
Omega Noggin Clips
A steel clip used to secure strip nogging through service holes to studs.
Bath Channel
An additional structural member of a wall panel set into studs to provide a recess for a bath.
